Application Fields

Model: DS100-DC
Pump Body Material: Engineering Plastic
Drive Mode: Motor

Specifications:

1、EPDM+EPDM Low Corrosion Resistance:
Rated Power (kW): 2.3W
Rated Flow Rate: 200ml/min
Rated Head: 10
Voltage (V): 24
Inlet Size: 3
Weight (kg): 0.050

2、PTFE+FPM Medium Corrosion Resistance:
Rated Power (kW): 2.3W
Rated Flow Rate: 190ml/min
Rated Head: 10
Voltage (V): 24
Inlet Size: 3
Weight (kg): 0.050

3、PTFE+FFPM 99% Media Resistance:
Rated Power (kW): 2.3W
Rated Flow Rate: 180ml/min
Rated Head: 10
Voltage (V): 24
Inlet Size: 3
Weight (kg): 0.050

Product Description:

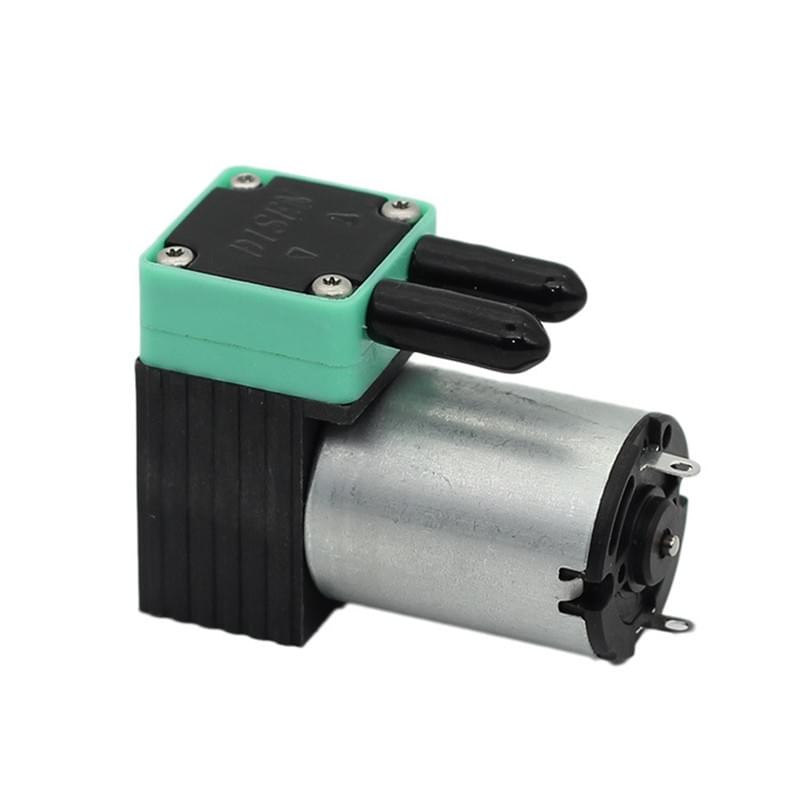

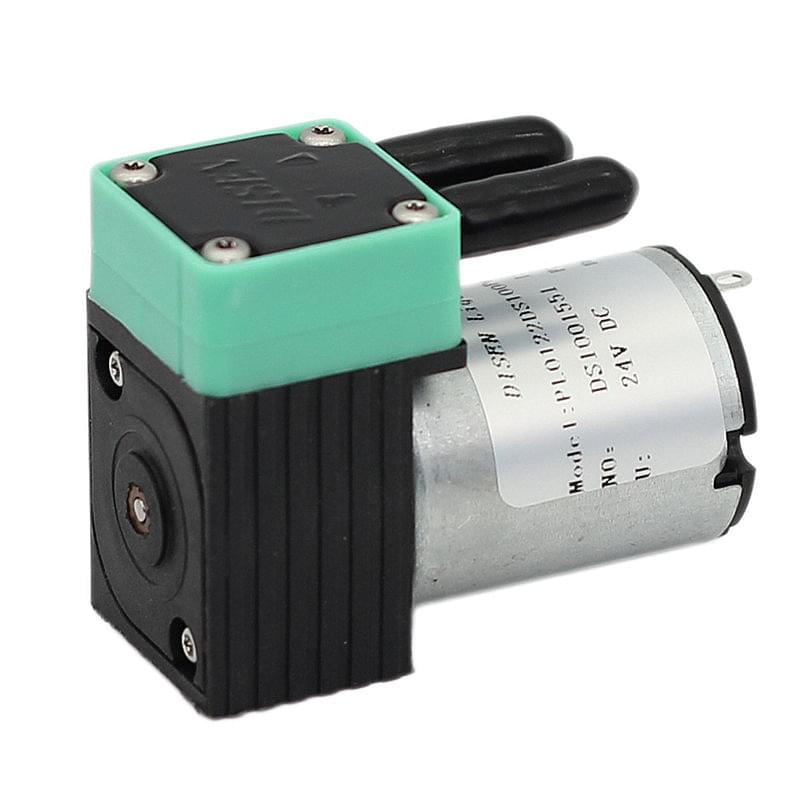

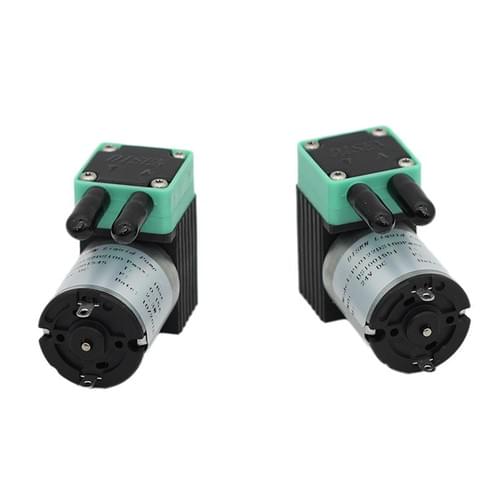

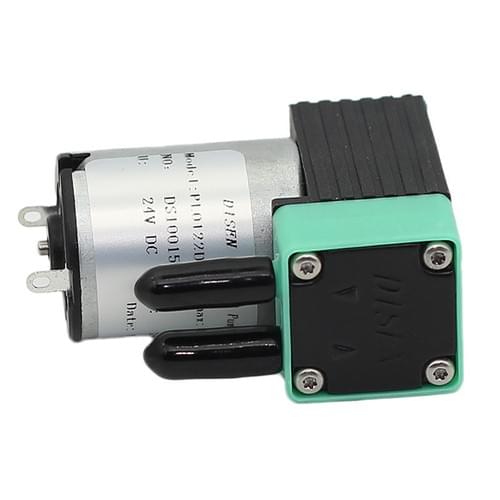

Multipurpose Corrosion-Resistant Micro Diaphragm Pump DS100-DC

The DS100-DC is an efficient and durable micro diaphragm pump designed for various liquid transfer and sampling applications. With its excellent corrosion resistance and stable performance, this pump has a wide range of applications in medical, inkjet printing, waste liquid treatment, and other fields.

Key Features:

Brushed DC Motor: Provides strong and stable power for reliable long-term operation of the pump.
Corrosion-Resistant Diaphragm: Utilizes high-quality diaphragm material with outstanding corrosion resistance to handle various corrosive liquids.
Multiple Material Options: Choose from different diaphragm and sealing materials such as EPDM+EPDM, PTFE+FPM, or PTFE+FFPM, depending on the corrosiveness of the liquid, to meet different application requirements.
Compact and Lightweight: The pump body is made of engineering plastic, making it lightweight and easy to carry and install.
Highly Efficient Transfer: With a rated flow rate of up to 200ml/min and a rated head of 10 meters, it can quickly and effectively transfer liquids.
Wide Voltage Range: Suitable for 24V DC power supply, adaptable to various power environments.
Specifications:

Model: DS100-DC
Pump Body Material: Engineering Plastic
Drive Mode: Motor
Rated Voltage: 24V DC
Inlet Size: 3mm
Weight: 0.050kg
The rated flow rate and corrosion resistance of the pump may vary depending on the selected diaphragm and sealing materials. The specific parameters are as follows:

EPDM+EPDM (Low Corrosion Resistance): Rated Flow Rate 200ml/min
PTFE+FPM (Medium Corrosion Resistance): Rated Flow Rate 190ml/min
PTFE+FFPM (99% Media Resistance): Rated Flow Rate 180ml/min

The DS100-DC multipurpose corrosion-resistant micro diaphragm pump is the ideal choice for various liquid transfer and sampling applications. Its excellent corrosion resistance, efficient transfer capability, and compact lightweight design make it the preferred pump in the medical, inkjet printing, waste liquid treatment, and other fields.
