Friendly Reminder:
Due to the unique nature of the product, the silicone tubing may become contaminated after use. Therefore, we do not support trial use. Once the product is sold, we do not accept returns or exchanges unless there is a quality issue. We kindly ask you to carefully read the product parameters before making a purchase. Thank you for your understanding and cooperation!

Product Description:

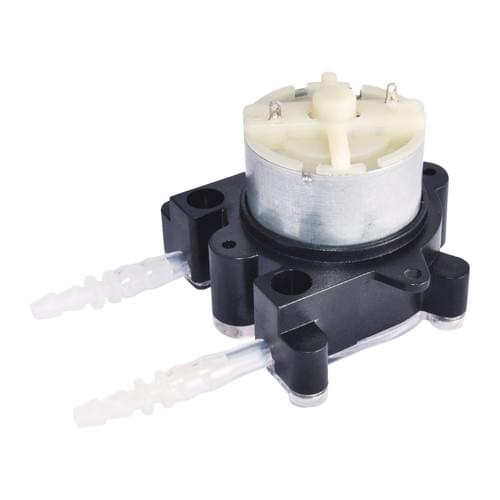

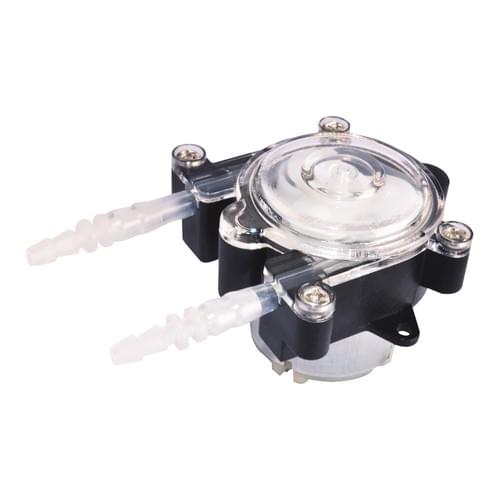

Introducing the G528 Micro Peristaltic Pump, a specialized metering pump designed for precise fluid delivery in various applications. Also known as a tubing pump, the peristaltic pump is widely used in situations that require accurate control of fluid transport.

Material and Construction:
Made from high-quality plastic material, the G528 pump is lightweight, durable, and easy to operate and maintain.
It is driven by an electric motor, ensuring reliability and convenience in different applications.

Features:
Designed specifically as a metering pump, the G528 Micro Peristaltic Pump provides accurate fluid delivery for a wide range of precise metering needs.

Technical Specifications:
Flow Rate: 150ml/min (0.00015m³/h) to meet diverse flow rate requirements.
Power Supply: DC 6V, allowing easy integration into various power systems.
Operating Environment: Suitable for temperatures between 0-40℃ and relative humidity below 80%.
Fluid Direction: The direction of fluid flow is determined by the positive and negative connection of the power supply, providing flexible installation and usage options.
Tube Compatibility: Internal diameter of 3mm and outer diameter of 5mm, ensuring precise fit between the tube and pump body.

Performance Parameters:
Flow Rate Range: 65-150ml/min, adjustable to accommodate different flow speed needs.
Speed Range: 0.1-60 rpm, allowing speed adjustment based on specific applications.
Current: 300-350mA, low power consumption, suitable for long-term operation.
Motor Dimensions: Diameter 32mm x Height 23mm, compact motor design for easy integration and portability.
Mounting Hole Center Distance: 48.5mm, standardized design for convenient installation and fixation.
Weight of Micro Peristaltic Pump: Only 0.15kg, lightweight and portable.

Applications:
The G528 Micro Peristaltic Pump has found wide applications in various fields, including but not limited to:

Laboratories: Accurate delivery of reagents during biochemical analysis and experimental processes.
Aquariums: Precise control of water flow and oxygen in aquarium tanks.
Pharmaceuticals: Precise metering during pharmaceutical filling processes.
Fine Chemicals: Accurate fluid delivery in fine chemical processes.
Biotechnology: Precise metering and delivery of biological agents.
Food Industry: Ensuring accurate ingredient proportions in food processing.
Papermaking: Precise control of chemical additives in the papermaking process.
Ceramics: Precise delivery of glazes in ceramic production.
Water Treatment: Accurate metering in environmental water treatment systems.
Environmental Protection: Handling wastewater and exhaust gases in environmental engineering.
Powder Handling: Accurate metering and mixing in powder engineering.

The G528 Micro Peristaltic Pump, with its precise metering performance, versatile applications, and lightweight design, is the ideal choice for laboratories, aquarium enthusiasts, and various industrial sectors. Whether in scientific research or industrial production, the G528 pump provides stable and reliable fluid delivery solutions.
