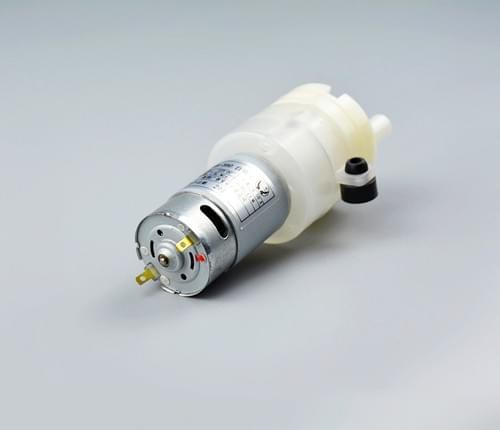

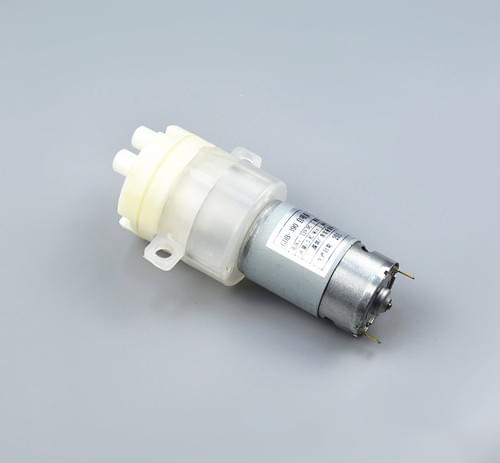

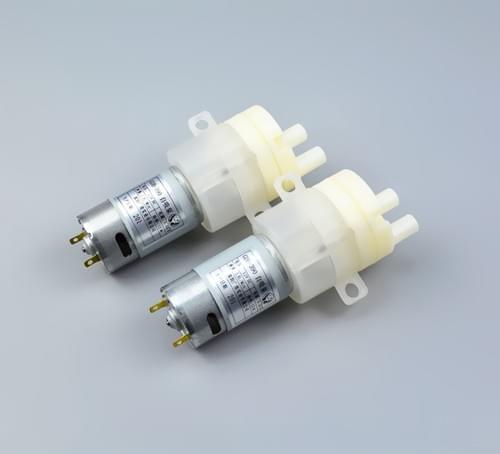

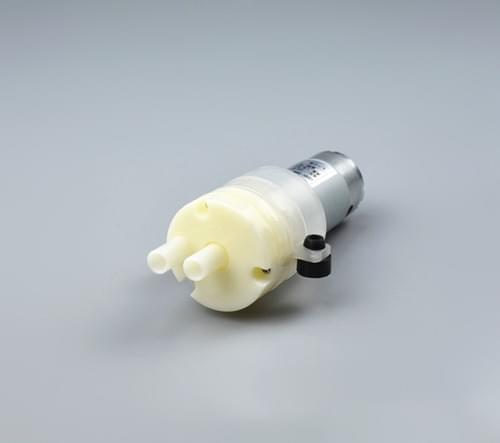

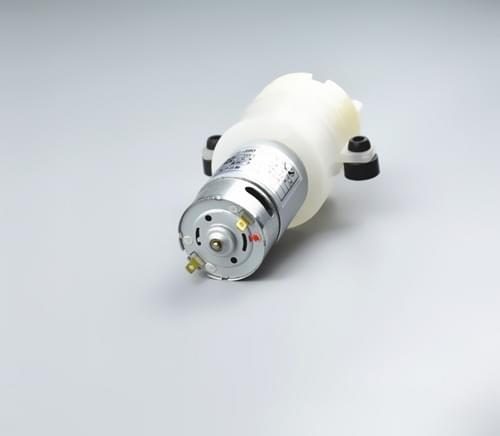

The GDB-390 carbonated beverage machine pump is a high-performance miniature water pump designed specifically for carbonated beverage machines and other liquid transfer applications. It utilizes advanced micro-pump technology and a new motor configuration to ensure excellent quality and performance. This pump is available in multiple voltage options (12V, 24V DC) to suit different working environments and requirements.

The GDB-390 pump is renowned for its exceptional durability, capable of continuous operation and load-bearing without compromising its performance. It has a lifespan of up to 10,000 cycles (with each cycle defined as 30 seconds on and 30 seconds off), making it an ideal choice for both commercial and residential applications.

During operation, the GDB-390 pump generates minimal noise, not exceeding 54 decibels (measured radially at a distance of 30 centimeters from the pump), ensuring a comfortable environment during use.

Furthermore, the GDB-390 pump boasts an impressive set of specifications. It has a rated power of 8.5 watts and a rated flow rate of 1.7 liters per minute, delivering stable performance even at a maximum head of 5 meters. It also has the capability to achieve a maximum flow rate of 1.8 liters per minute and a maximum head of 10 meters, catering to various application demands.

The lightweight design of the GDB-390 makes it easy to carry and install, weighing only 0.14 kilograms. It has an inlet size of 8 millimeters and a working suction of over 1 meter. The minimum working pressure is at least 0.15 megapascals (1.5 bar). The pump exhibits excellent environmental adaptability, capable of operating within a temperature range of 4 degrees Celsius to 60 degrees Celsius.

In conclusion, the GDB-390 carbonated beverage machine pump is an efficient, reliable, and user-friendly miniature water pump suitable for a wide range of liquid transfer applications. Whether for commercial or residential use, it delivers excellent performance and long-lasting durability.

Specifications: GDB-390 (Round Shape)
Rated Power (kW): 8.5W
Rated Flow Rate (m³/h): 1.7L/Min
Rated Head (m): 5m
Operating Voltage: 12V, 24V (DC)
Maximum Flow Rate (m³/h): 1.8L/Min
Maximum Head (m): 10m
Weight (kg): 0.14
Inlet Size: 8mm
Working Suction: ≥1.00m
Working Pressure: ≥0.15MPa (1.5bar)
Operating Current: 0.70A, 0.35A
Output Power: 8.5W
Working Flow Rate: 1.8L/Min, ±5%
No-load Current: 0.20A
Operating Temperature: 4°C-60°C
Operating Noise: ≤54dB (Radial test at a distance of 30cm from the pump)
