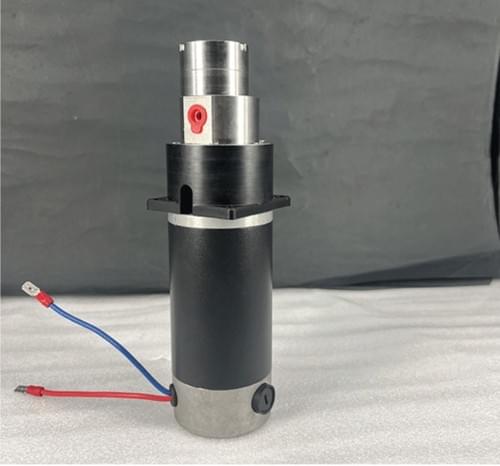

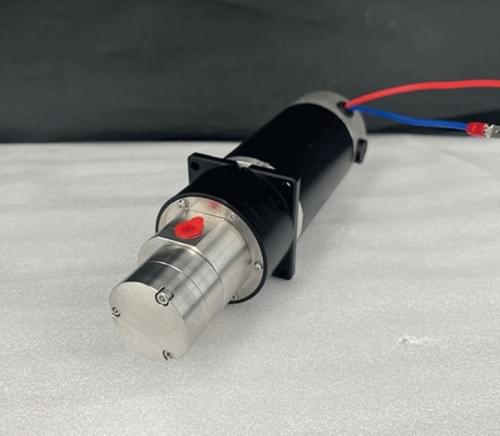

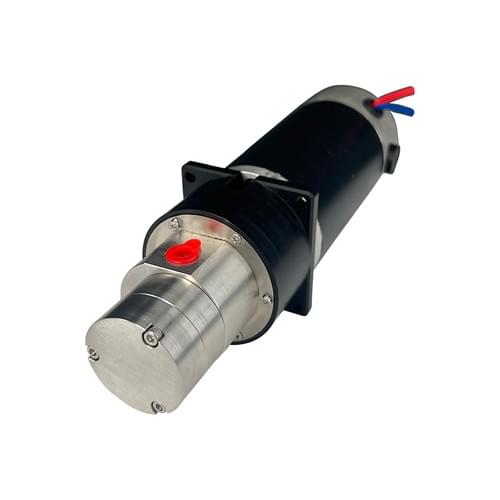

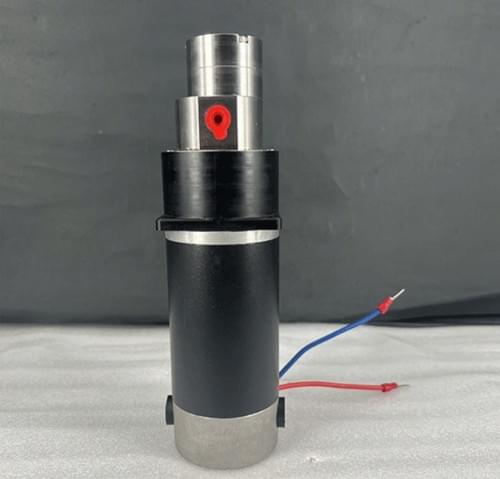

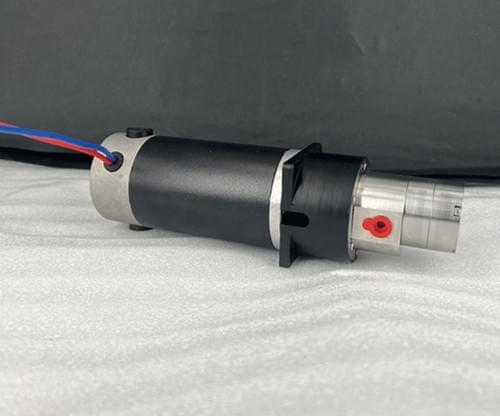

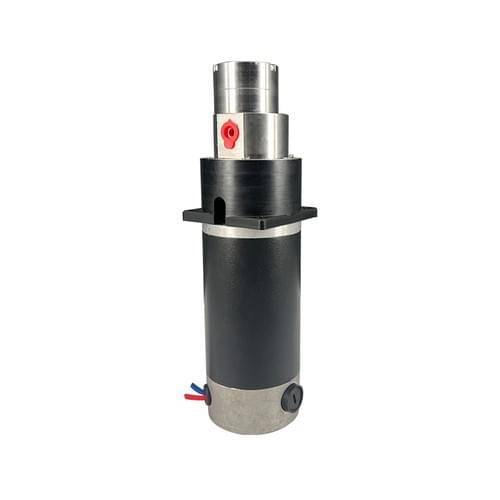

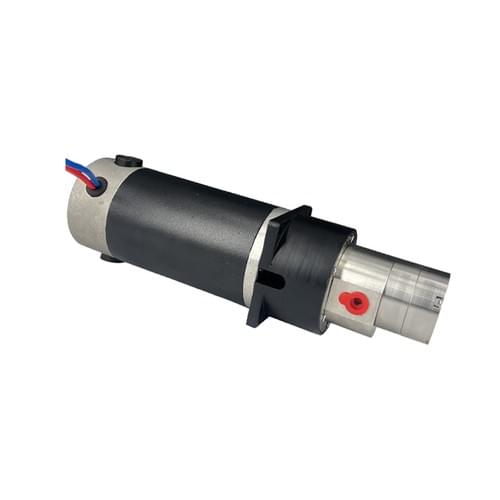

Product Name: Food-Grade Mini Stainless Steel Magnetic Gear Pump

Product Description: This food-grade mini stainless steel magnetic gear pump, model WSFSGE0.9GHTS-24-50W, is specifically designed for the food and beverage industry as an efficient and hygienic filling solution. Made of high-quality stainless steel 316 material, it ensures that parts in contact with food are safe, non-toxic, and meet food-grade standards.

  Main Features:

• Rated Power: 50W, providing stable power output.
• Rated Flow: 0.9ml/rev, ensuring precise measurement.
• Maximum Flow Rate: Up to 3L/min, meeting the demand for efficient filling.
• Voltage: 24V, a safe voltage standard suitable for various working environments.
• Maximum Head: 50 meters, adapting to different filling heights.
• Pump Body Material: Stainless steel 316, corrosion-resistant, easy to clean, suitable for the food processing environment.
• Drive Method: Magnetic drive, with a shaftless design to prevent leakage and enhance safety.
• Inlet Size: G1/8, a standard interface for easy connection.
• Outlet Pressure: 9bar, meeting the requirements for high-pressure filling.
• Weight: 1.8204kg, lightweight design for easy handling and installation.
• Motor Type: Brushed motor, stable performance, and easy maintenance.
• Speed: 3000RPM, high speed ensures rapid filling.
• Rated Current: 1.8A, low energy consumption, economical and practical.
• Inlet and Outlet Direction: On both sides of the pump body, flexible layout to adapt to different filling line configurations.
• Inlet and Outlet Threads: G1/8, standard threads for easy installation and replacement.
• Temperature Range: 0-80°C, suitable for working environments of different temperatures.
• Static Seal Material: PTFE, high-temperature resistant, corrosion-resistant, ensuring sealing performance.
• Gear Material: PEEK, high strength, wear-resistant, extending the pump's service life.

 Application Fields:

• Suitable for filling and conveying in the food, beverage, dairy, pharmaceutical, and other industries.
• Ideal for precise measurement and filling of liquids and semi-solid foods.

This pump, with its efficiency, hygiene, and safety, is an ideal choice for the food processing industry. Its replaceable carbon brush design further reduces maintenance costs and enhances the reliability and durability of the equipment.
