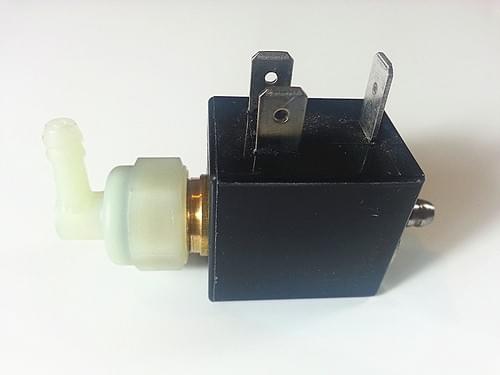

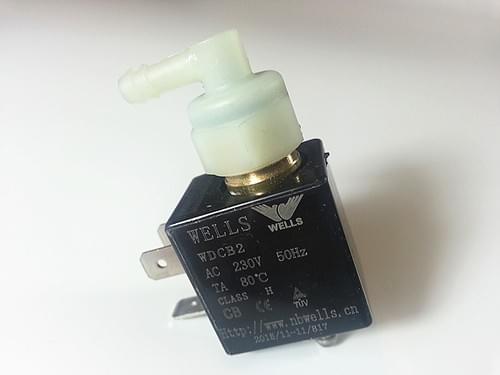

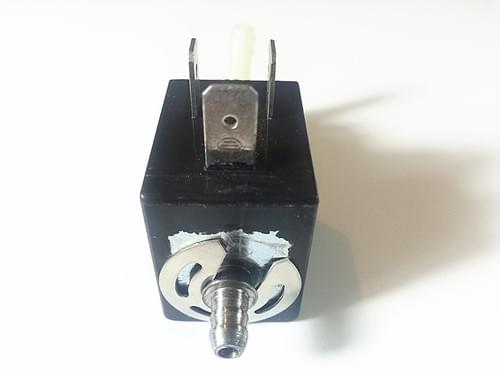

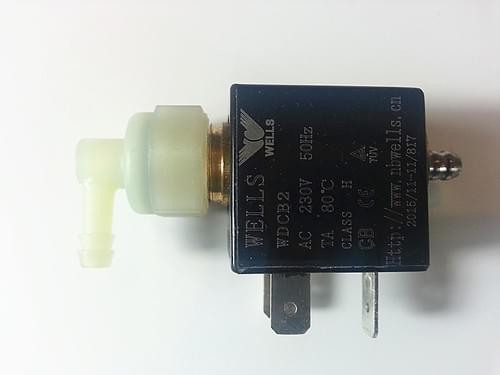

Reciprocating Unit: Plunger Pump
Model: WDCB2-L
Material: Plastic
Drive Mode: Magnetic
Performance: Automatic
Application: Water Pumping
Impeller Number: Single Stage
Pump Shaft Position: Horizontal
Voltage/Frequency: AC100-120V/60Hz AC230-240V/50Hz
Power: 15W
Liquid Extraction: Pure Water at 20℃
Operating Temperature: 0-60℃
Operating Mode: Continuous Operation
Insulation Class: H Class
Maximum Pressure: 2-5 bar
Flow Rate (OBar): 30-150ml/min
Flow Rate: 0.0018-0.012
Suction Port Diameter: 5(mm)
Discharge Port Diameter: 5(mm)
Flow Control: ±10%
Noise: <35dB
Lifespan: Over 1000 hours
Working Environment: Not submersible in water

Product Application:
Steam Mops
Steam Vacuum Cleaners
Steam Irons
Steam Microwaves
Medical Instruments
Disinfection Cabinets
Electric Irons
Garment Steamers
Suitable for Water Pumping in Appliances

Note:
This product offers precise and stable flow rate, with low noise and power consumption. It has a long lifespan with superior sealing performance and no liquid leakage.

Key Features:

Piston Pump Design: The WDCB2-L features a robust piston design that ensures consistent and reliable water flow.
AC Operation: Compatible with AC100-120V/60Hz and AC230-240V/50Hz, the pump offers flexible operation.
Low Power Consumption: With a power consumption of just 15W, the pump is energy efficient, reducing operating costs.
Pure Water Operation: Designed to extract pure water at 20°C, the pump ensures optimal performance.
Wide Temperature Range: Operating within a temperature range of 0-60°C, the pump offers flexibility in various environments.
Continuous Operation: Engineered for continuous operation, the pump offers uninterrupted water supply.
Superior Insulation: With an insulation class of H, the pump offers enhanced safety and durability.
Precise Flow Control: The pump offers a flow control accuracy of ±10%, ensuring consistent water delivery.
Quiet Operation: Producing less than 35dB of noise, the pump offers whisper-quiet operation.
Longevity: Designed for a lifespan of over 1000 hours, the pump offers exceptional durability.
Water Immersion Proof: The pump is not intended for immersion in water, ensuring secure operation in wet environments.
Applications:

Ideal for a range of water pumping applications, the WDCB2-L reciprocating unit is suitable for use in steam mops, steam cleaners, steam irons, steam microwave ovens, medical equipment, disinfection cabinets, electric ironing machines, and other related devices that require precise water delivery.

In summary, the WDCB2-L reciprocating unit offers a reliable, efficient, and quiet solution for water pumping applications. Boasting exceptional performance and longevity, this pump is an excellent choice for both home and commercial use.
